Fiber Optic Cable ADSS Cable Single Sheath 50m span 24F

Model: NTOFC-ADSS-S-50-HDPE-BK-SMD-24F

Characteristics: * All dielectric non-material strength member. * Special gel in the tube offers critical protection for the fibers.           * FRP central strength members and filling compound of aramid yarn from Dupont. * Excellent AT performance * Good stability performance with high and low temperatures and anti-aging. * It’s light weight and small diameter reduce loading on towers from ice and wind.

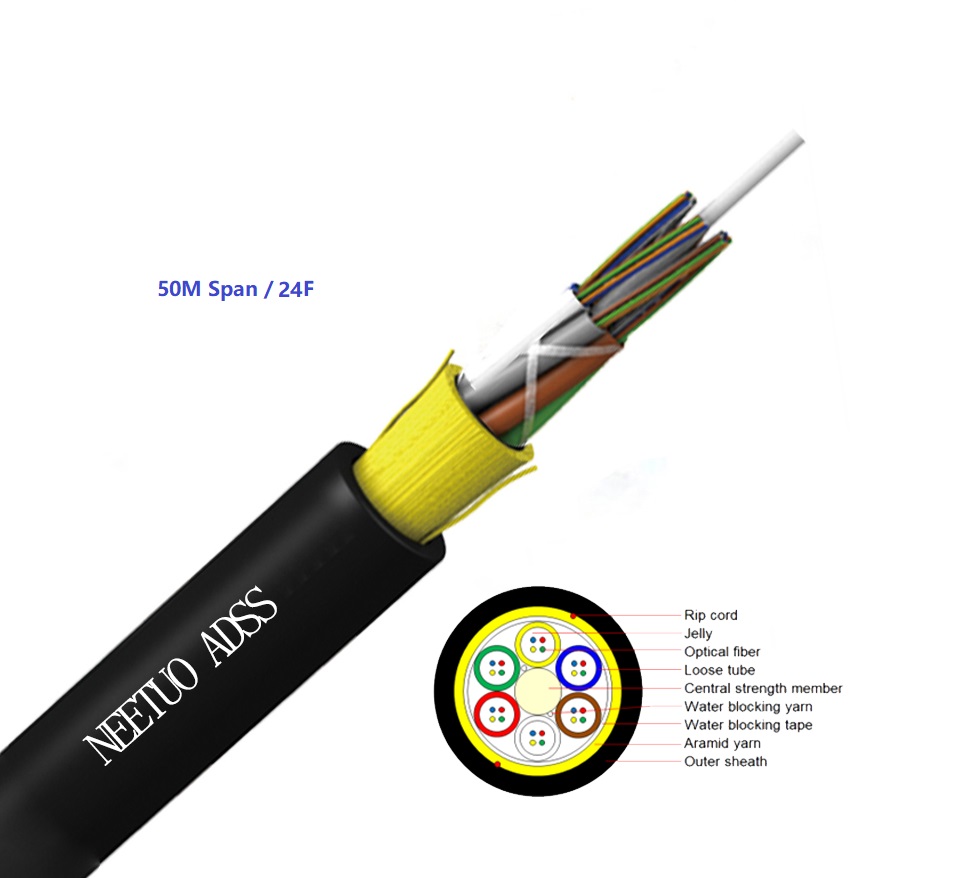

Structure Description: * Central strength member (CSM): FRP rod * Fiber 2-288F IUT-T G652D * Loose tube containing fibers and filled with a suitable water tightness filling compound * Loose tubes SZ stranded around CSM * Longitudinal water tightness: dry core with water swellable yarns * Water blocking tape * Aramid Yarn * Outer Sheath: Black HDPE * All materials are RoHS compliant


Applications: * Aerial / long distance wiring system     * Wiring system in high voltage           * Aerial installation in harsh environments.


Specifications:

Parameter

Specifications

Fiber Count

12

24

36

48

96

144

Cable   Structure

6

6

6

6

6

12

Fiber   No. per tube

6

6

6

6

8

12

Loose   Tube

Tube   Counts

2

4

6

4

8

12

Material

PBT

Water-blocking   Material

Fiber jelly

Central   strength member

Material

FRP rod(Coated with PE if needed)

Size/mm

2.2

2.2

2.2

2.5

2.5

2.5

Ripcord   Quantity(撕裂线数量)

2

2

2

2

2

2

Sheath

Material

HDPE,black

NomThickness(mm)

1.6

1.6

1.6

1.6

1.6

1.6

Overal   diameter(nom.)(mm)(±0.2)

10.3

10.4

10.4

11

12.3

14.9

Cable   Weight/kg

73

76

76

86

109

162

MAT(N)

-

2000

2000

2000

2400

2400

2400

RTS(N)


5000

5000

5000

6000

6000

6000

Crush   Resistance(N/100mm)

Short   Term

2000

2000

2000

2000

2000

2000

Long   Term

600

600

600

600

600

600

Min.Bending Radius(mm)

Static

10D(   D is the cable diameter)

Dynamic

20D

Temperature

Range ()

Storage

-30~+70

Installation

-10~+60

Operation

-30~+70







Categories
