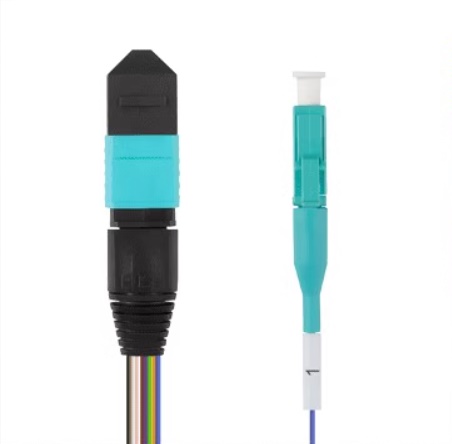

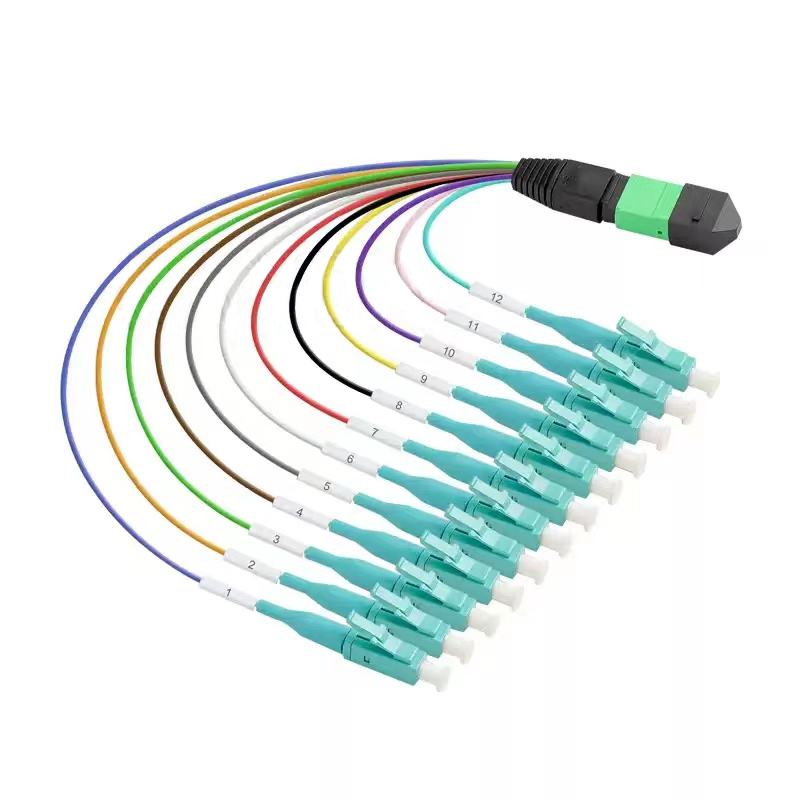

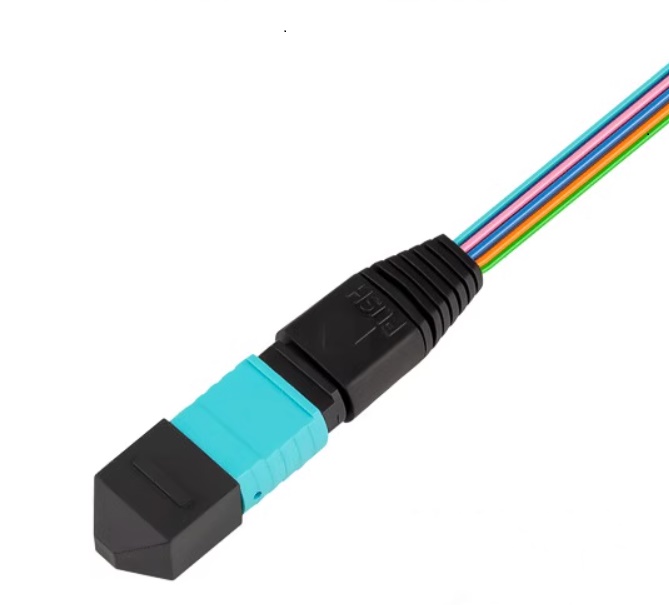

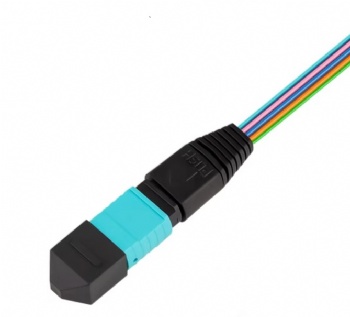

OM3 MPO-LC 0.9mm multicores Patch Cord Assembly

The MPO-LC 0.9mm multicores patch cord assemblies are designed for fast and efficient wiring in the high-density data center, The precision MPO ferrules and components are used to ensure higher precision during optical fiber docking. Complying with MPO standards while providing better performance levels, 8, 12, 16 or 24C are available, fiber could be OS1,OS2,OM3,OM4. Neetuo MPO Patch cord is produced with IEC 61754-7 and EIA/TIA-604-5 Compliant.

Product Brief Introduction:

The MPO-LC 0.9mm multicores patch cord assemblies are designed for fast and efficient wiring in the high-density data center, The precision MPO ferrules and components are used to ensure higher precision during optical fiber docking. Complying with MPO standards while providing better performance levels, 8, 12, 16 or 24C are available, fiber could be OS1,OS2,OM3,OM4. Neetuo MPO Patch cord is produced with IEC 61754-7 and EIA/TIA-604-5 Compliant.

End A

MPO

End B

Simplex LC UPC

Fiber Type

OM3(50/125μm)

Wave length

850/1300nm

Branch OD:

0.9mm

Branch length

30cm

MPO IL

小于0.25dB

LC UPC IL

小于0.25dB

MPO RL

>25dB

LC UPC RL

>30dB

Jacket

LSZH,ODNR,OFNP

Cores

8,12,24



Features:

●Optimize cable management to speed deployment and increase flexibility and manageability, reducing installation costs;

● Allow smaller bending radius of optical fiber cable, cables could be coild in small drum;

● Compared to traditional bulky fiber optic cable solutions, the capacity of fiber optic cable trays is expanded, half of the wiring space can be saved;

● Fiber optic cables have circular branch plugs, making wiring simpler and increasing storage capacity;

● Suitable for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 data center high-density applications;

● MPO connectors are fully compliant with MPO standards and provide higher performance levels compared to universal MPO connectors;
