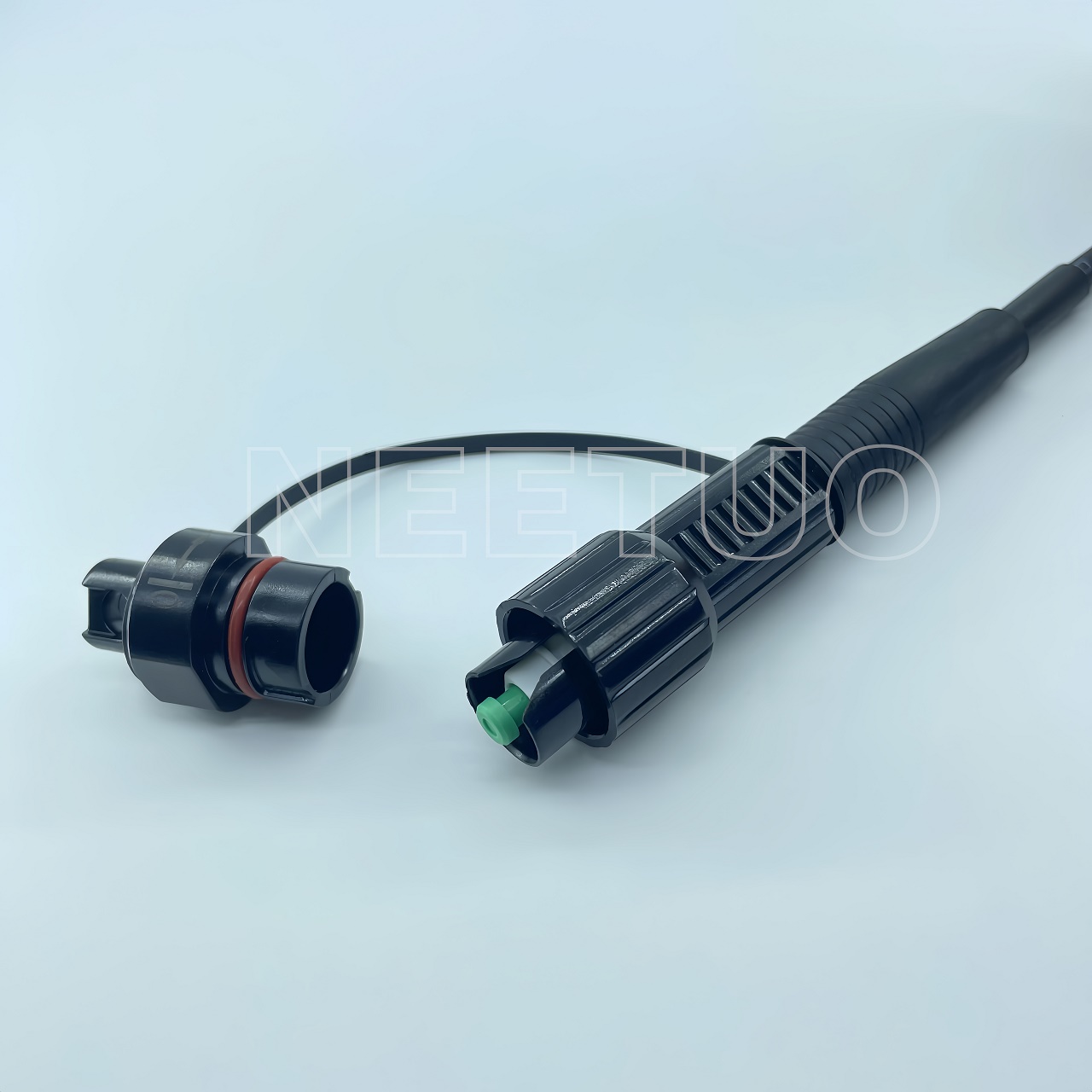

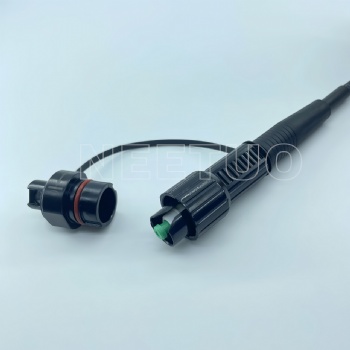

Huawei Hardened connector SC/APC preconnectorized with 5.0mm Duct Drop Cable

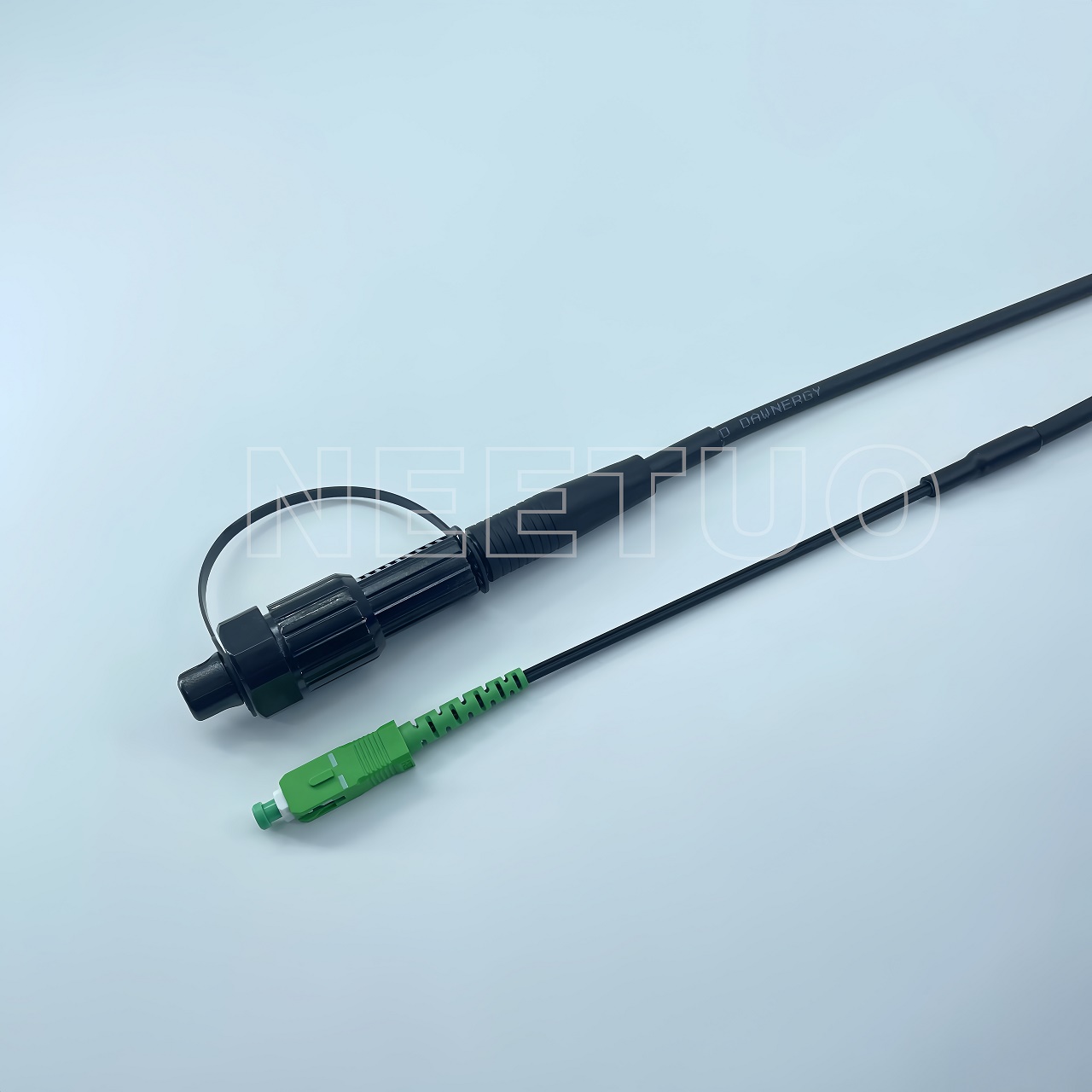

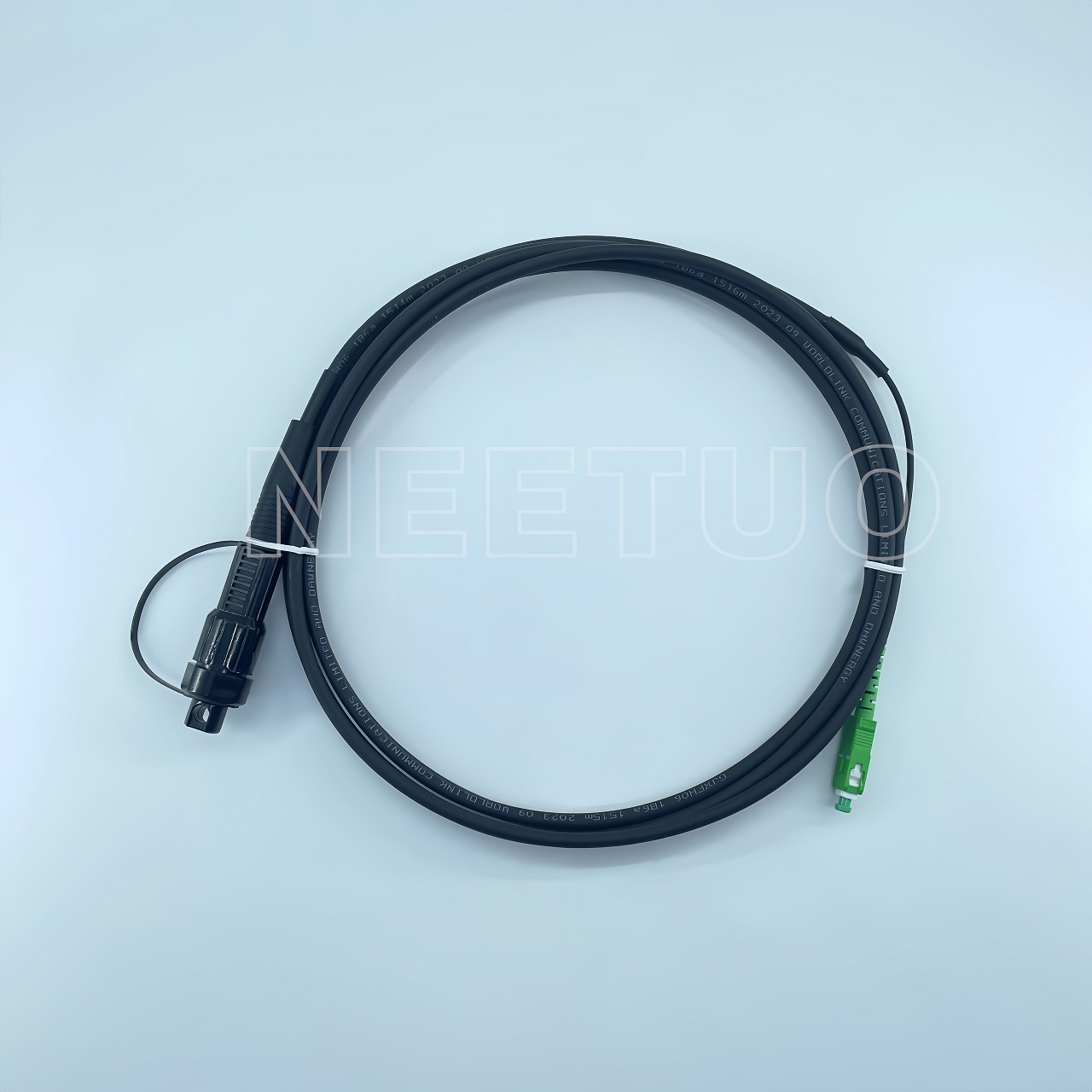

The water-proof assemblies are 5.0mm duct drop cable preconnectorized with Huawei hardened connector, it is generally used outside integrally with hardened Huawei adapters in the MST box or enclosure, it could be Huawei SC/APC to stub end, or Huawei SC/APC to regular SC/APC end with armored branch.This drop assemblies have excellent environment adaptability.

Description
Inquiry

Production Brief Introduction:

Connector

	Insertion Lose/dB typical	Reflectance Lose/dB typical
OptiTap End	＜0.25dB	＞60
Regular SC/APC	＜0.25dB	＞60

Specification of Fiber G657A1:

Items	Content	Value
Attenuation Coefficient	@1310nm	≤0.36dB/km
Attenuation Coefficient	@1550nm	≤0.21dB/km
Mode field diameter (MFD)	@1310nm	8.6±0.4μm
Mode field diameter (MFD)	@1550nm	9.6±0.4μm
Cable cutoff wavelength λcc(nm)	≤1260nm
Micro bending lose(1 turn,7.5mm radius)	@1550nm	≤0.5dB
Micro bending lose(1 turn,7.5mm radius)	@1625nm	≤1.0dB
Geometrical characteristics
Cladding diameter	125±0.7μm
Cladding non-circularity	≤1%
Core concentricity error	≤0.5μm
Fiber diameter with coating (uncolored)	245±7μm
Cladding/coating concentricity error	≤12.0μm
Proof stress level	≥100kpsi

*G652D,G657A2 are available upon requirement

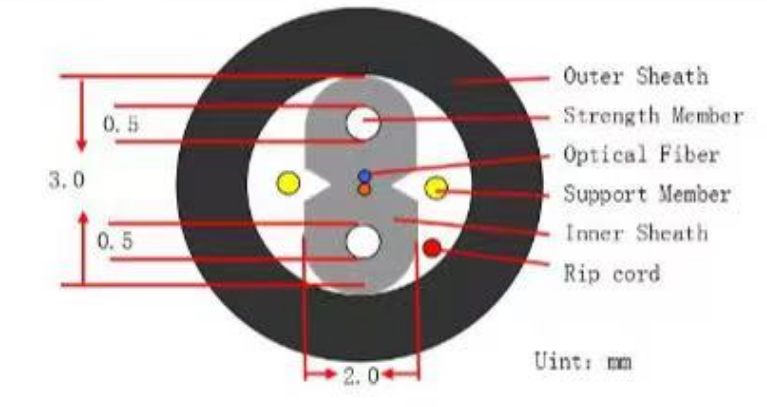

Specification of Cable:

Fiber Count	Copper Wire	NEETUO Part#	Diameter	Cable weight	Tensile Loading /N		Crush Resistance N/100m		Bending Radius
Fiber Count	Copper Wire	NEETUO Part#	mm	Kg/km	Long term	Short term	Long term	Short Term	Bending Radius
1	/	NT-HW-Duct-SCAPC-1	2*5.0mm±0.2	20	600	300	2000	2000	20D
2	/	NT-HW-Duct-SCAPC-1	2*5.0mm±0.2	20	600	300	1000	2000	20D
