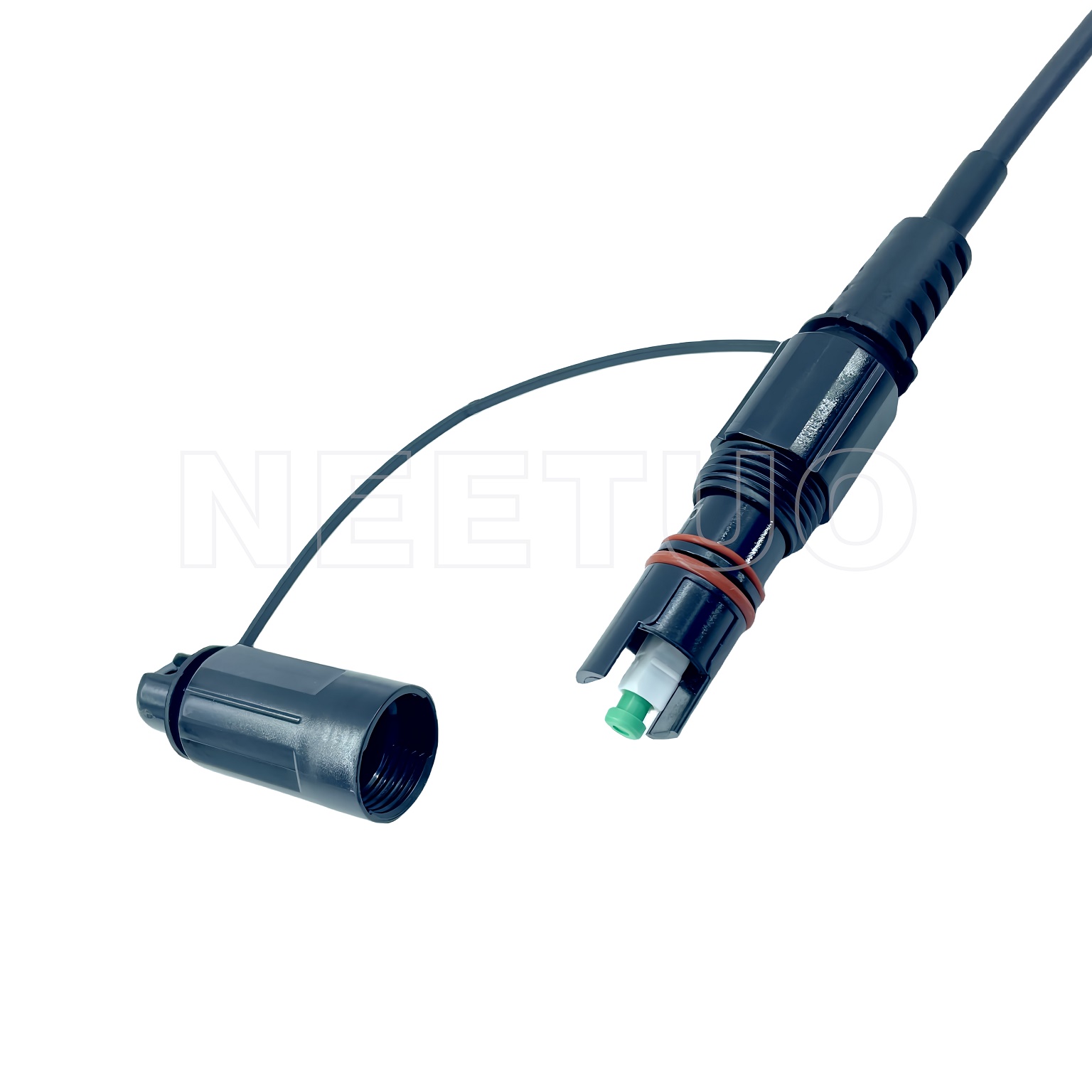

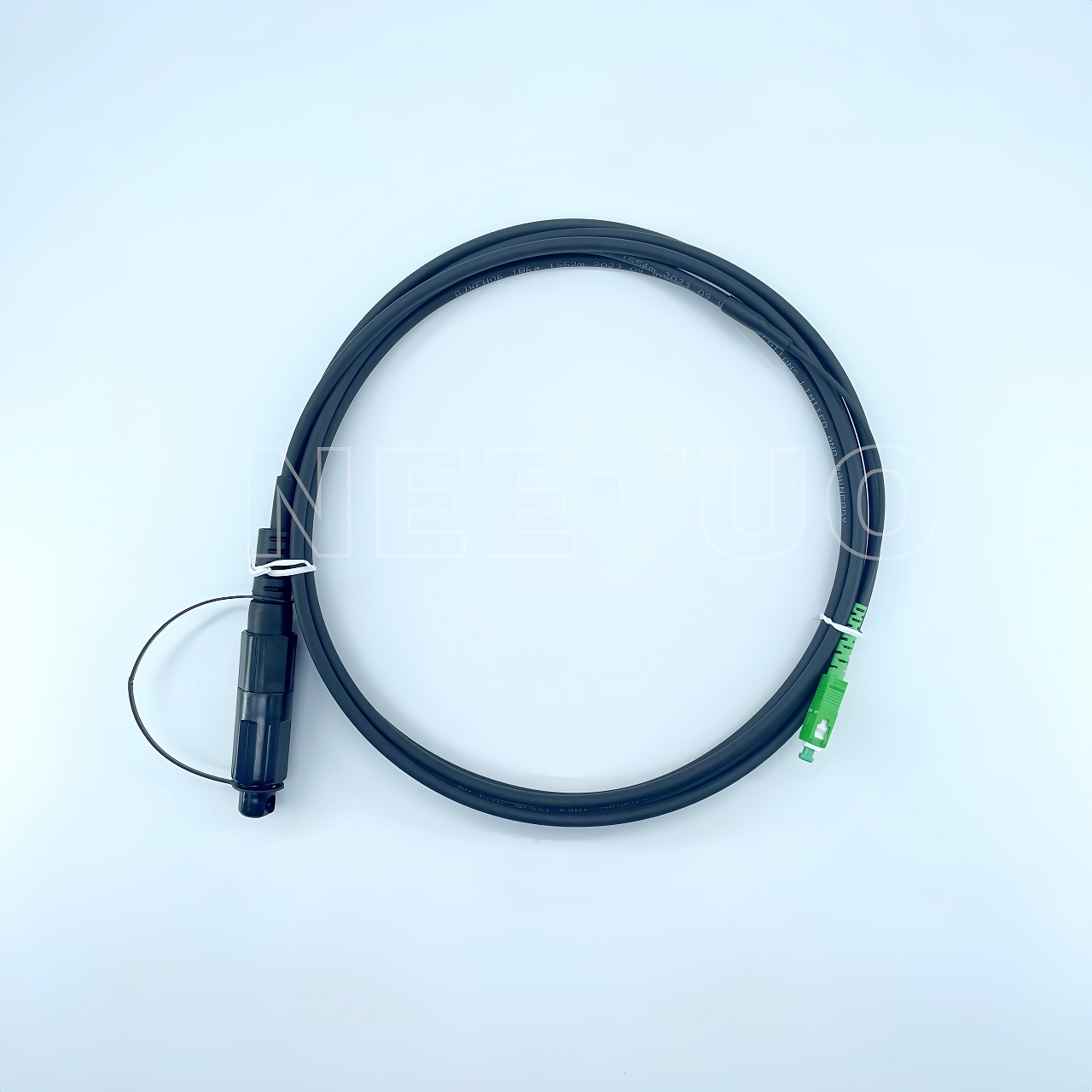

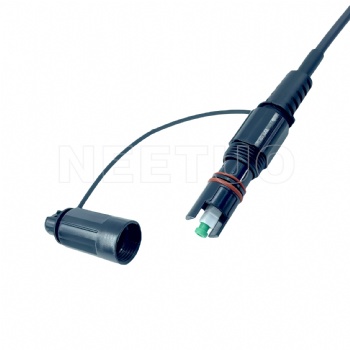

OptiTap Hardened connector SC/APC preconnectorized with 5.0mm Duct Drop Cable

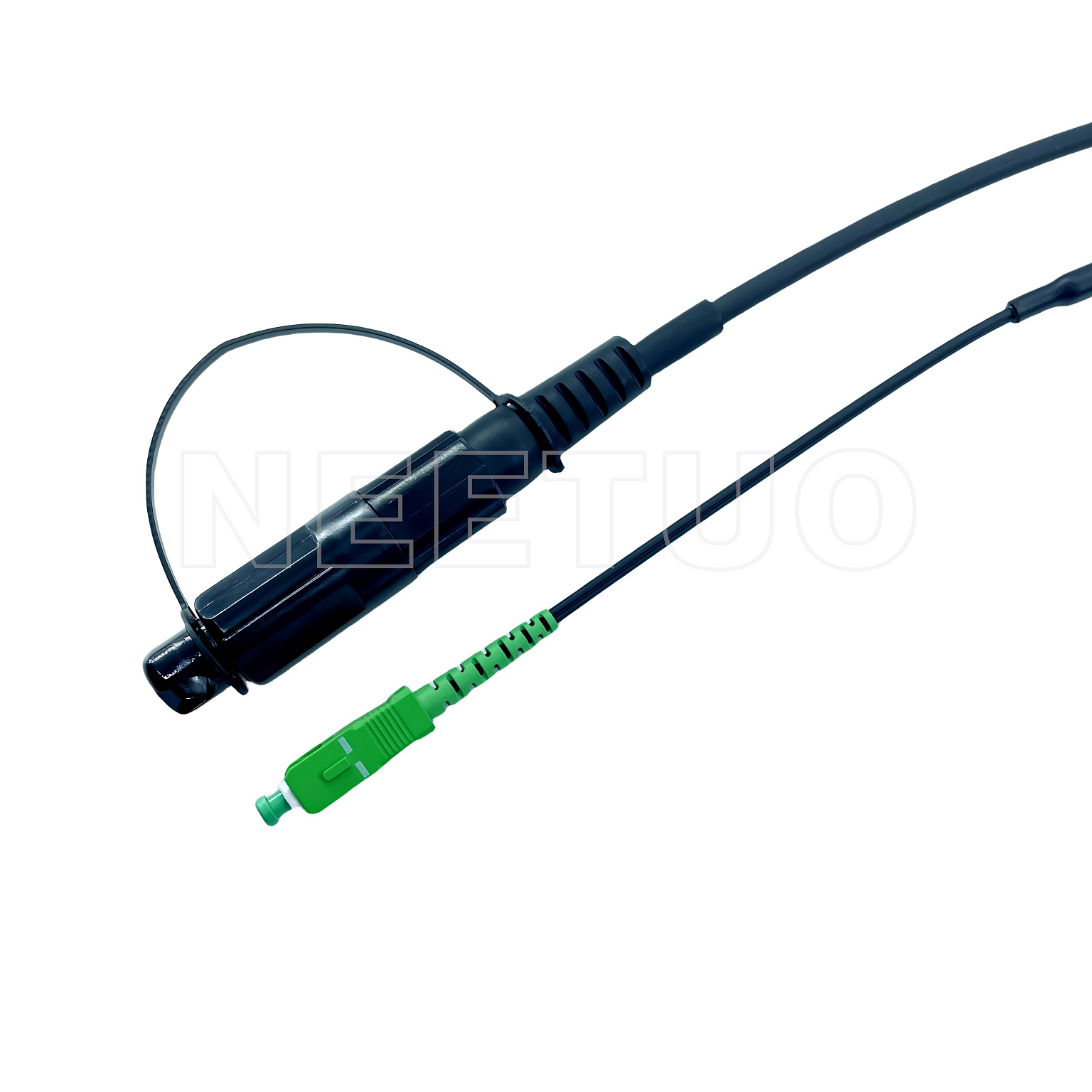

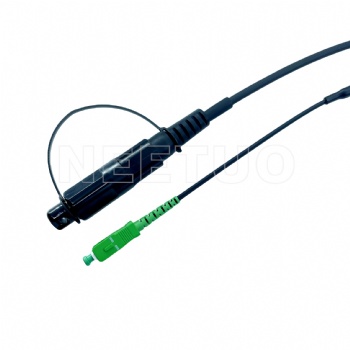

The water-proof assemblies are 5.0mm duct drop cable preconnectorized with OptiTap hardened connector, it is generally used outside integrally with hardened OptiTap adapters in the MST box or enclosure, it could be OptiTap SC/APC to stub end, or OptiTap SC/APC to regular SC/APC end with armored branch.This drop assemblies have excellent environment adaptability.

Production Brief Introduction:

The water-proof assemblies are 5.0mm duct drop cable preconnectorized with OptiTap hardened connector, it is generally used outside integrally with hardened OptiTap adapters in the MST box or enclosure, it could be OptiTap SC/APC to stub end, or OptiTap SC/APC to regular SC/APC end with armored branch.This drop assemblies have excellent environment adaptability.




Connector


Insertion   Lose/dB  typical

Reflectance   Lose/dB typical

OptiTap   End

<0.25dB

>60

Regular   SC/APC

<0.25dB

>60



Specification of Fiber G657A1:

Items

Content

Value

Attenuation   Coefficient

@1310nm

≤0.36dB/km

@1550nm

≤0.21dB/km

Mode field diameter

(MFD)

@1310nm

8.6±0.4μm

@1550nm

9.6±0.4μm

Cable cutoff   wavelength λcc(nm)

≤1260nm


Micro bending lose(1   turn,7.5mm radius)

@1550nm

≤0.5dB

@1625nm

≤1.0dB

Geometrical   characteristics

Cladding diameter

125±0.7μm

Cladding non-circularity

≤1%

Core concentricity   error

≤0.5μm

Fiber diameter with   coating (uncolored)

245±7μm

Cladding/coating   concentricity error

≤12.0μm

Proof stress level

≥100kpsi

*G652D,G657A2 are available upon requirement

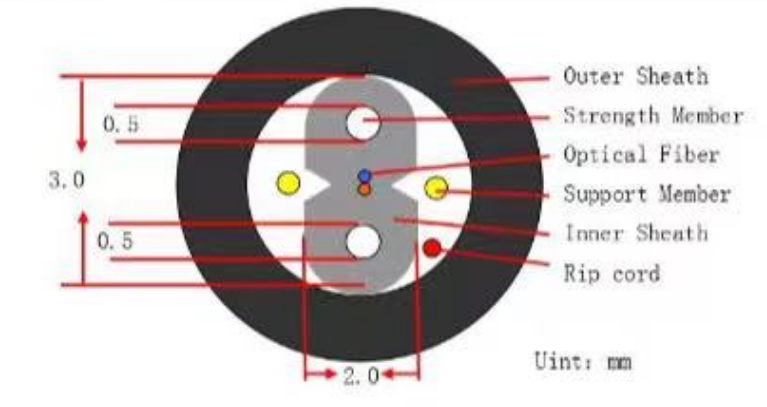

Specification of Cable:

Fiber Count

Copper Wire

NEETUO Part#

Diameter

Cable weight

Tensile Loading /N

Crush Resistance    N/100m

Bending Radius

mm

Kg/km

Long term

Short term

Long term

Short Term

1

/

NT-OptiTap-Duct-SCAPC-1

2*5.0mm±0.2

20

600

300

2000

2000

20D

2

/

NT-OptiTap-Duct-SCAPC-1

2*5.0mm±0.2

20

       600

300

1000

2000

20D



Operating:-40℃~+60℃

Store/Transport :-50℃~+70℃

Installation -20℃~+60℃
