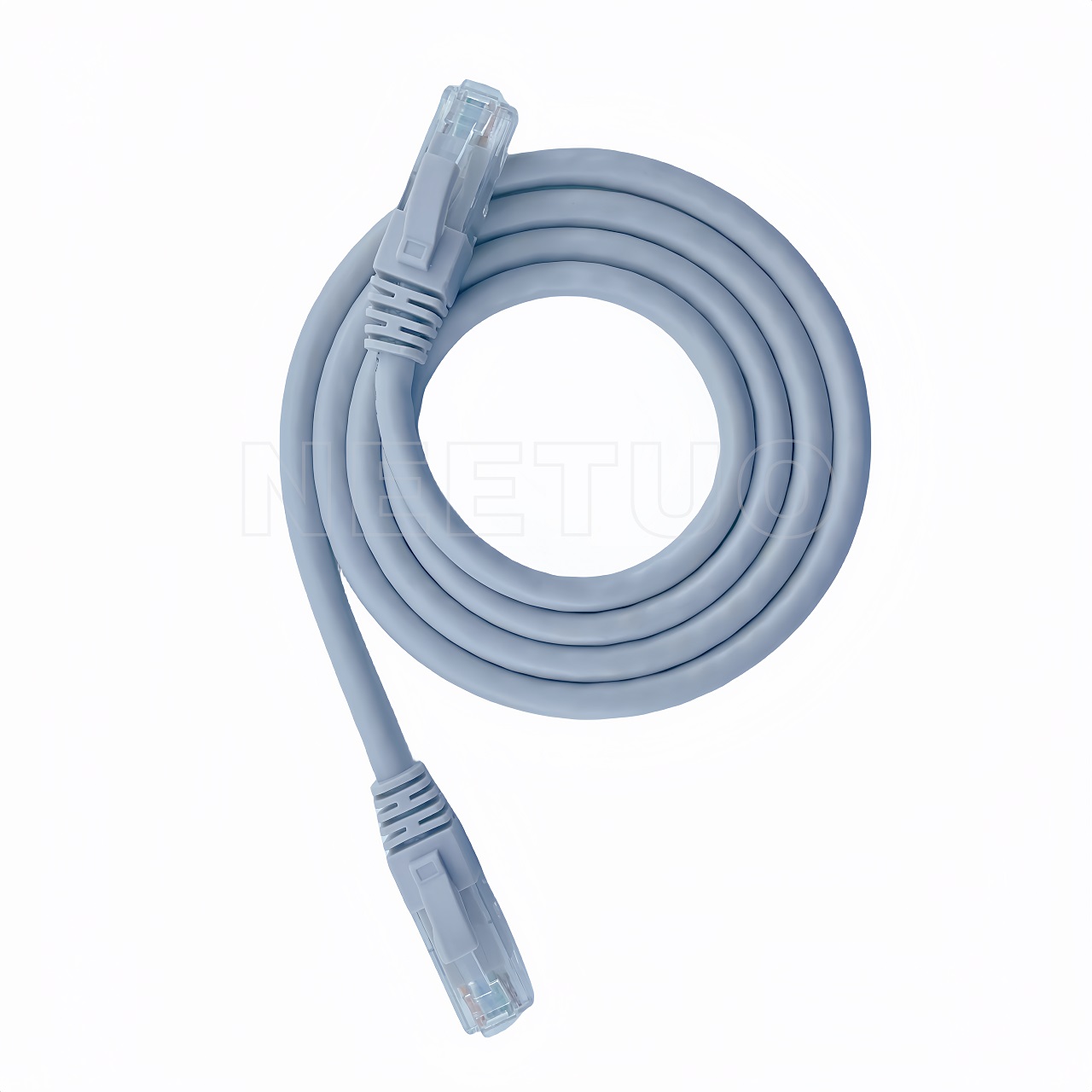

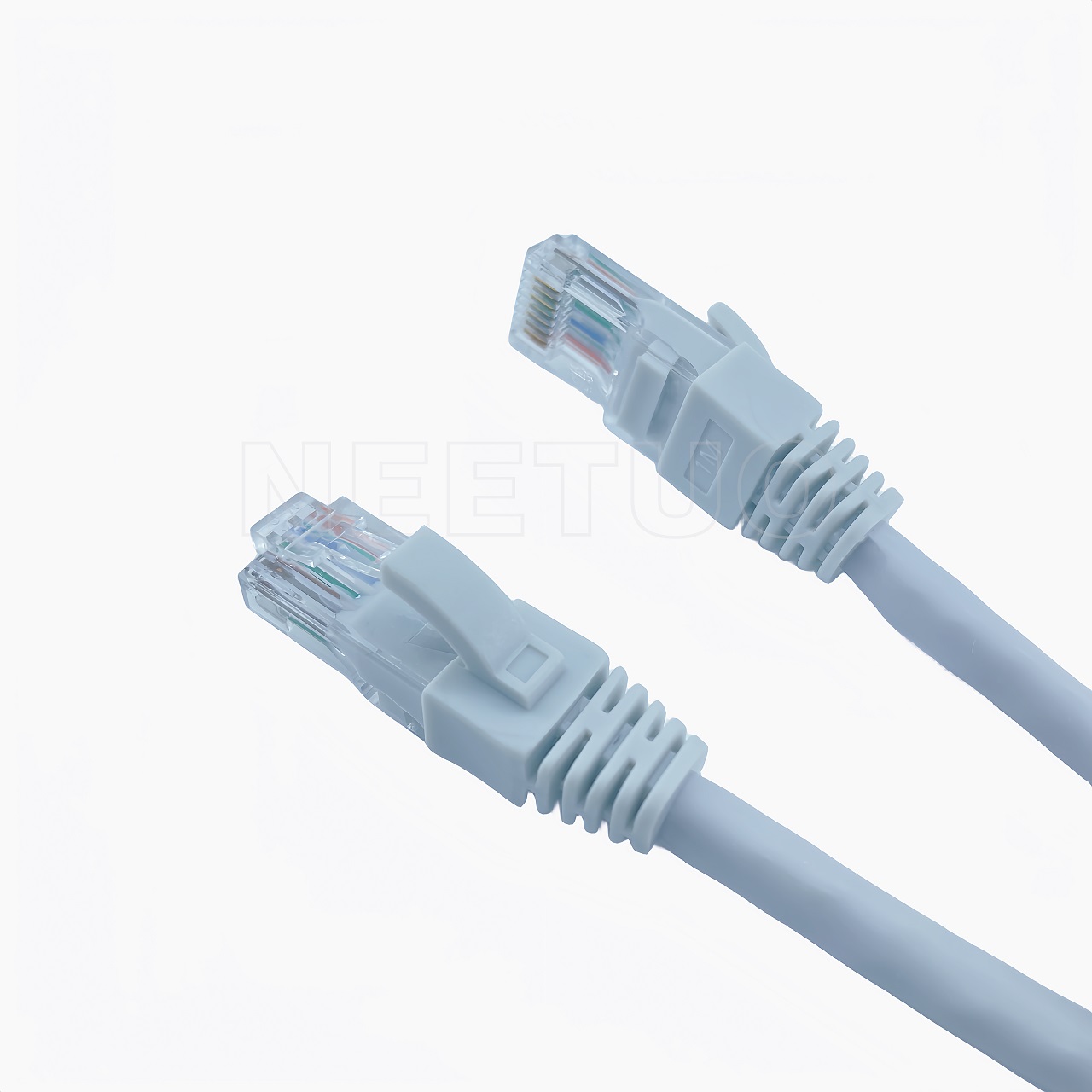

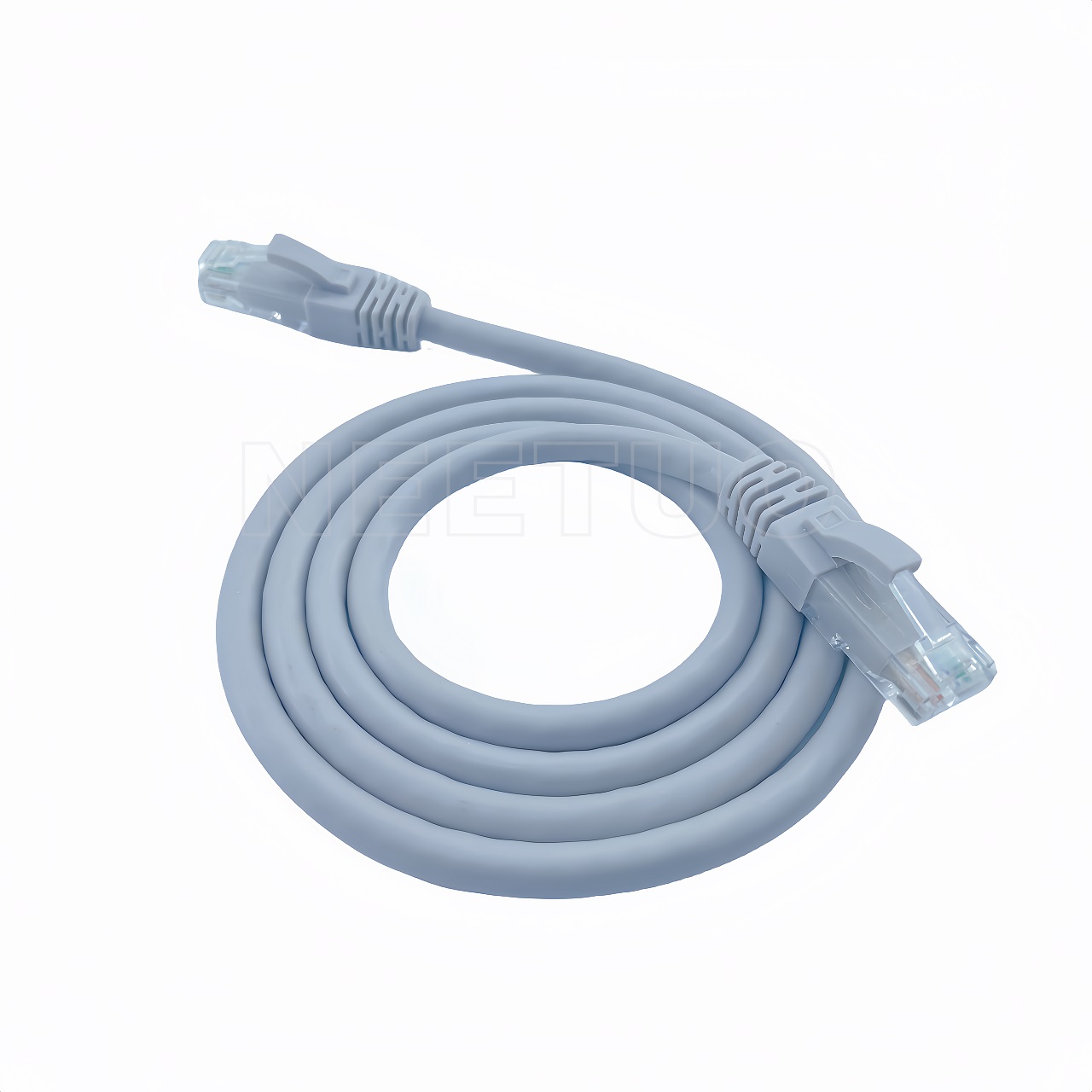

CAT6a UTP PVC Patch Cable 26AWG Snagless Molded Boot

NEETUO premium CAT6a UTP Patch Cable is made of 26AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. Cat6a network patch cable is the cost-effective solution for data center and SMB applications. Design for computers, hubs,switches, routers, DSL/cable modems and patch panels in Gigabit datacenter applications. With fast transmission and excellent signal quality, it ensures peak performance through your LAN.

Overview

NEETUO premium CAT6a UTP Patch Cable is made of 26AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Cat6a network patch cable is the cost-effective solution for data center and SMB applications. Design for computers, hubs,switches, routers, DSL/cable modems and patch panels in Gigabit datacenter applications. With fast transmission and excellent signal quality, it ensures peak performance through your LAN.

Features:

●Exceed ANSI/TIA-568-D.2 Category 6a and ISO 11801 Class Ea Standards

●Up to 550MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

●Performance Tested with Fluke and Wired T568B

●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes

●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Use in Voice/Video/VoIP Systems in Local Area Network

●Support Current and Future Category 6a/6/5e/5 Applications

 Specification:


印字Printing Mark

NEETUO   LAN CABLE CAT6a UTP 24AWG Stranded COPPER TIA/EIA568.B  xx/xx/xxxx    xxxxm

规格Category

CAT6a

屏蔽类型Shielding

非屏蔽Unshielded

导体Conductor

26AWG多股 纯铜 24AWG Stranded  Copper Wire

绝缘Insulation

HDPE

地线Grouding Wire

/

撕裂线Rip Cord

/

护套Jacket

PVC /   LSZH(圆形Round

外径OD

5.8mm±0.4

接头Connector

RJ45水晶头注塑RJ45 crystal Molded Boot 50μ''

线序Wire Scheme

T568B,   Straight

Operation   Temperature

-20 to   +75°C

Installation   Temperature

-10 to   +50°C

 Standards:

ANSI/TIA-568-D.2

ISO/IEC 11801

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL1863

EU Directive 2011/65/EU (RoHS-2)
