Overview

NEETUO premium CAT6a FTP Patch Cable is made of 26AWG stranded pure copper conductor with foiled twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

 Features:

●Exceed ANSI/TIA-568-D.2 Category 6a and ISO 11801 Class Ea Standards

●Up to 550MHz with 10G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

●Performance Tested with Fluke and Wired T568B

●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes

●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Provide superior electromagnetic interference protection and Maintain signal integrity over long distances

●Support Current and Future Category 6a/6/5e/5 Applications

 Specification:

 Standards:

ANSI/TIA-568-D.2

ISO/IEC 11801

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL1863

EU Directive 2011/65/EU (RoHS-2)

Compliant Network Standards:

10BASE-T                 100BASE-TX             100BASE-T4

1000BASE-T             5GBASE-T                 10GBASE-T

ATM-25                    ATM-51                     ATM-155

100VG-AnyLan         TR-4                          TR-16 Active

TR-16 Passive

Packing demo:

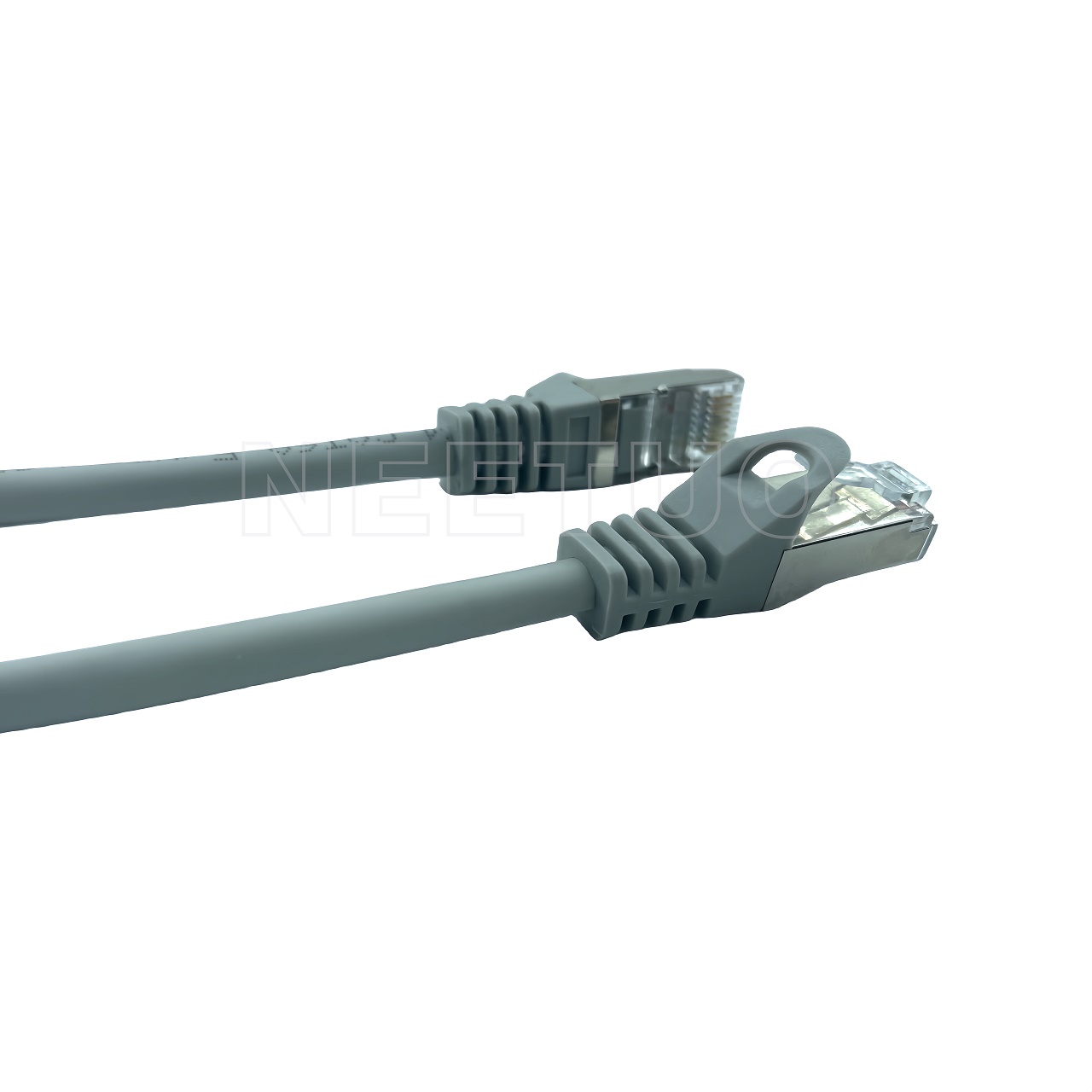

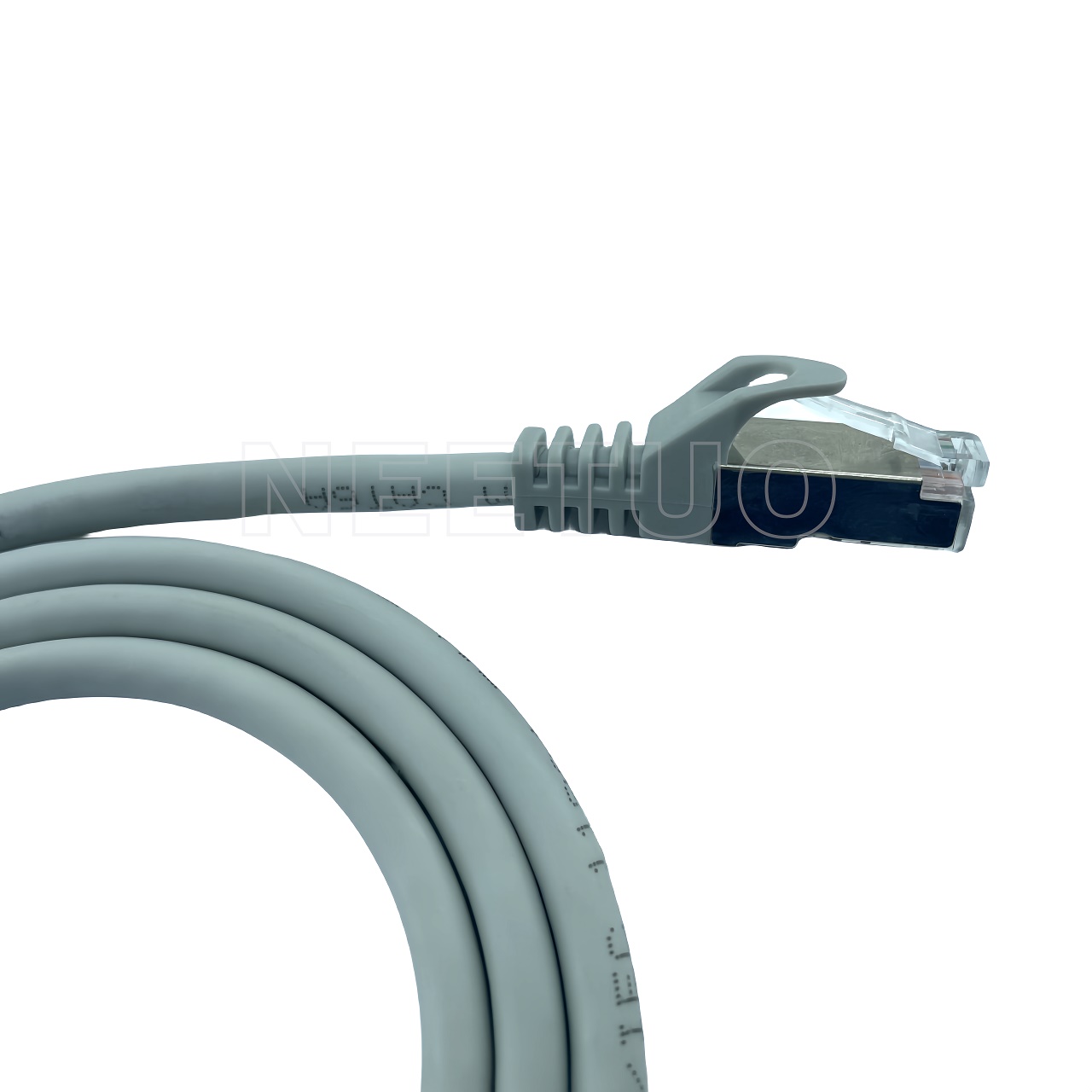

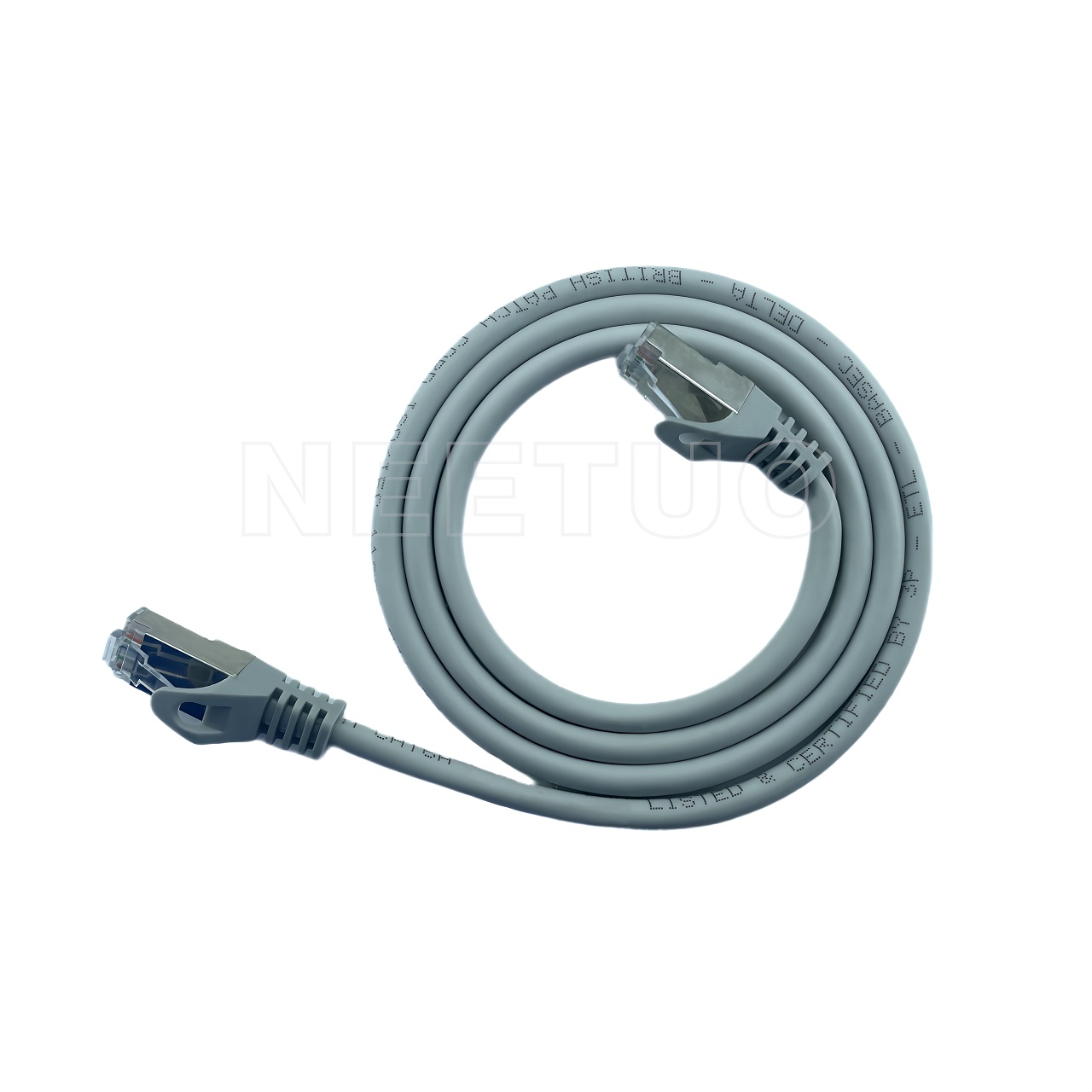

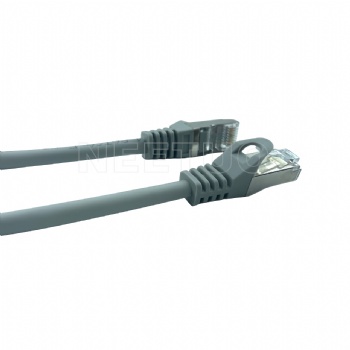

Network Patch Cord samples photos:
