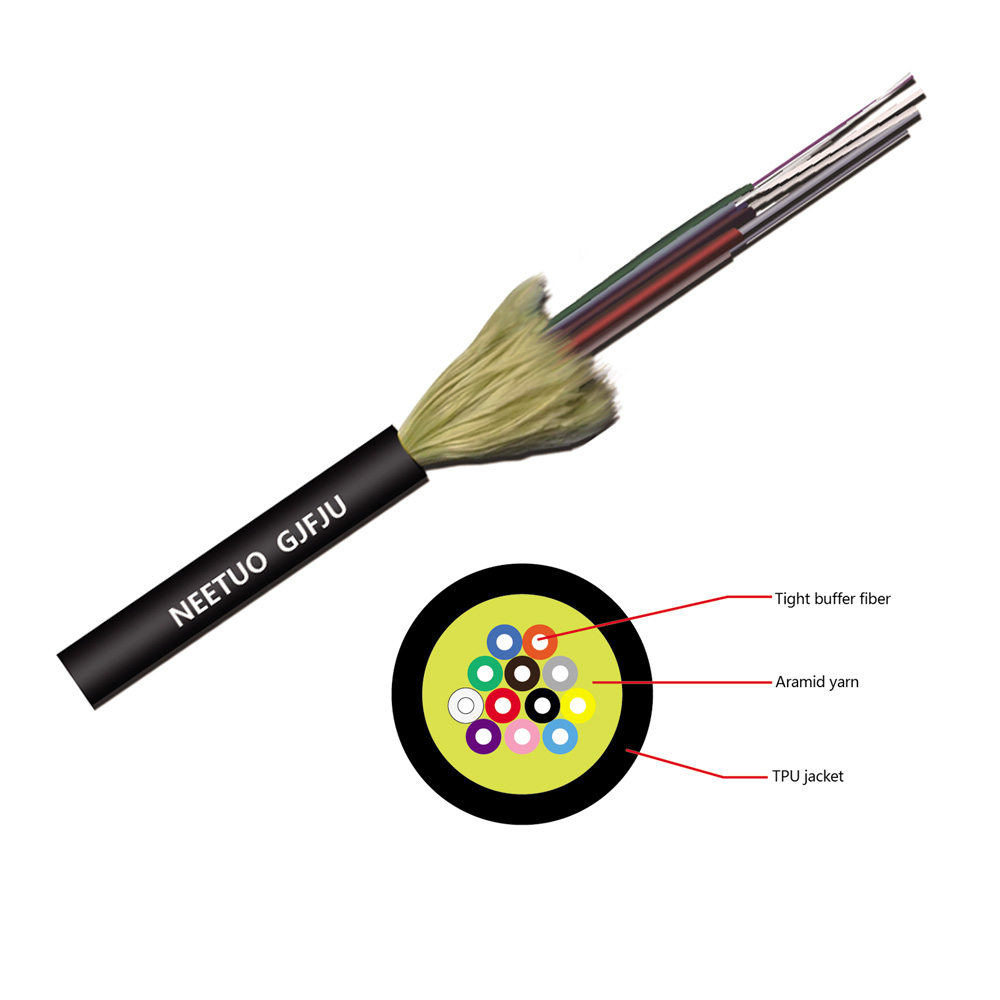

Non-armoured bundle GJFJU tactical cable

High strength and toughness polyurethane TPU jacket, oil and ocid resistant chemical corrosion, DuPont Kevlar imports strengthened to enhance the anti-pull.
Good flexibility, can maintain softness in low temperature Wearable pressure and with good buffer.
Circular cross-section design to facilitate the alignment groove, pipe, small size, soft and flexible, easy to peel, easy construction and operation, especially far repeated occasions.

Description
Inquiry

Characteristics:
High strength and toughness polyurethane TPU jacket, oil and ocid resistant chemical corrosion, DuPont Kevlar imports strengthened to enhance the anti-pull.
Good flexibility, can maintain softness in low temperature Wearable pressure and with good buffer.
Circular cross-section design to facilitate the alignment groove, pipe, small size, soft and flexible, easy to peel, easy construction and operation, especially far repeated occasions.

Applications:
Variety of rapid retractable. repeated retractable quick wiring,temporary wiring occasions.
Field-work,stage wiring,live broadcast.
Military communications,fast wiring,for portable cable repairing communications.

Ordering Information:
1.Cores:2-12cores
2.Fiber type in details
For example: Non-armoured bundle GJFJU 4cores SM/G657A2

Standard：
ICEA-596, GR-409,YD/T1258.4-2005，IEC60794

Specifications：

fiber count	（mm）outer diameter	（g/M）weight	（N）tension		（MM）bending radius		（N/100mm2）pressure
fiber count	（mm）outer diameter	（g/M）weight	short time	long time	static	Dynamic	short time	long time
4	4.8土0.2	21	1200	600	20D	10D	500	2000
6	5.2土0.2	26	1200	600	20D	10D	500	2000
8	6.2士0.2	35	1600	800	200	10D	500	2000
12	6.8士0.2	43	1800	900	20D	10D	500	2000
16	7.4土0.4	55	2000	1000	20D	10D	500	2000
24	8.2士0.4	68	2500	1000	20D	10D	500	2000
