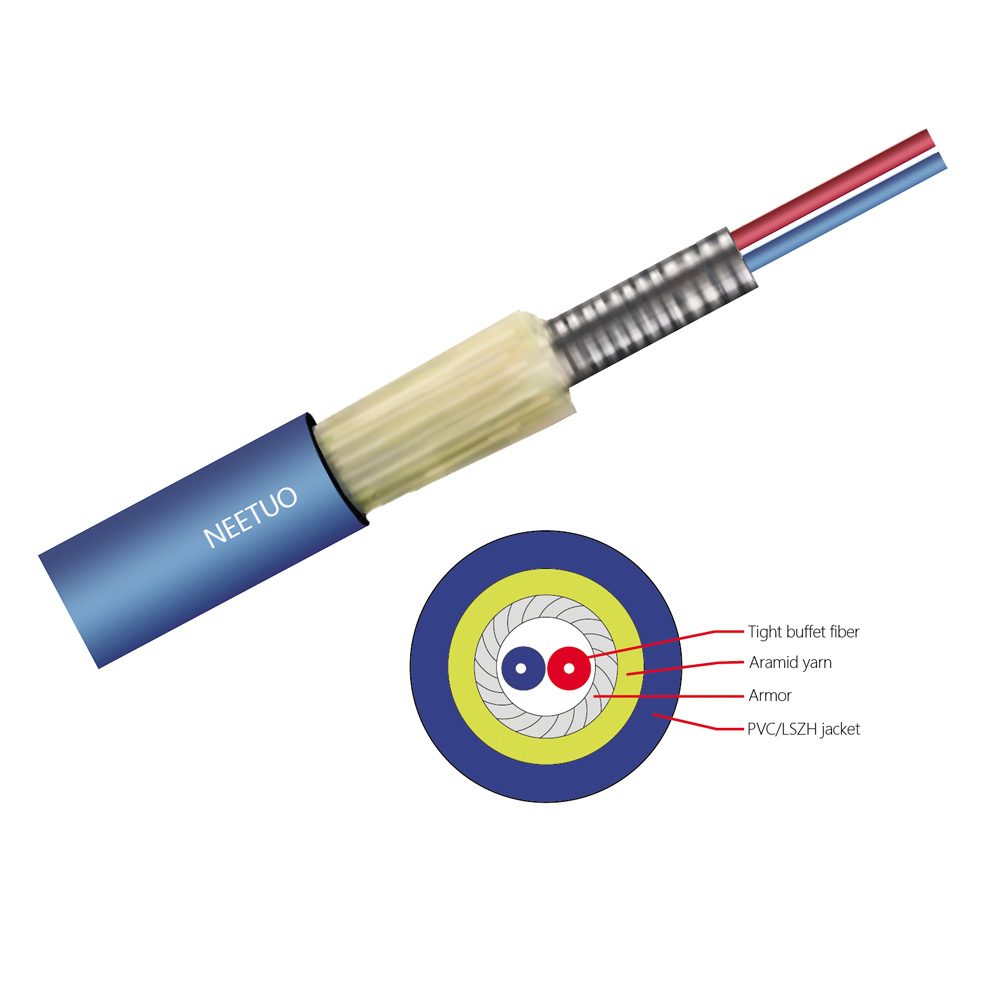

Duplex single Tube Armored cable(GJSFJV)

LSZH or PVC jacket.
It is the construction stainless steel tube with Dupont aramid yarn provide the cable enough tensile strength and pressure strength.
Add stainless steel weave mesh can further enhance cable tension, and enhance the performance of rat bite prevention.
Circular section design. convenient line grooves. pipes Small volume.good bending radius,easy to stripping, convenient for operation.

Description
Inquiry

Characteristics:
LSZH or PVC jacket.
It is the construction stainless steel tube with Dupont aramid yarn provide the cable enough tensile strength and pressure strength.
Add stainless steel weave mesh can further enhance cable tension, and enhance the performance of rat bite prevention.
Circular section design. convenient line grooves. pipes Small volume.good bending radius,easy to stripping, convenient for operation.

Applications:
Room indoor wiring.
FTTH optical home, user terminal.
Shaft, building wiring.

Ordering Information:
Fiber type in details
For example: GJSFJV duplex SM/G657A2

Standard:
ICEA-596, GR-409, YD/ T2488-2013

Specifications:

fiber count	(mm)parallel reinforcement specification	（mm）outer diameter	（g/M）weight	max（N）tension		（N）max crush resistance		（MM）bending radius
				short time	long time	short time	long time	static	Dynamic
2	Kevlar	Φ2.0mm	13	150	300	300	1000	10D	20D
2	Kevlar	Φ3.0mm	17	200	500	300	1000	10D	20D
2	Kevlar+stainless steel weave mesh	Φ3.2mm	19	350	800	500	1000	10D	20D
