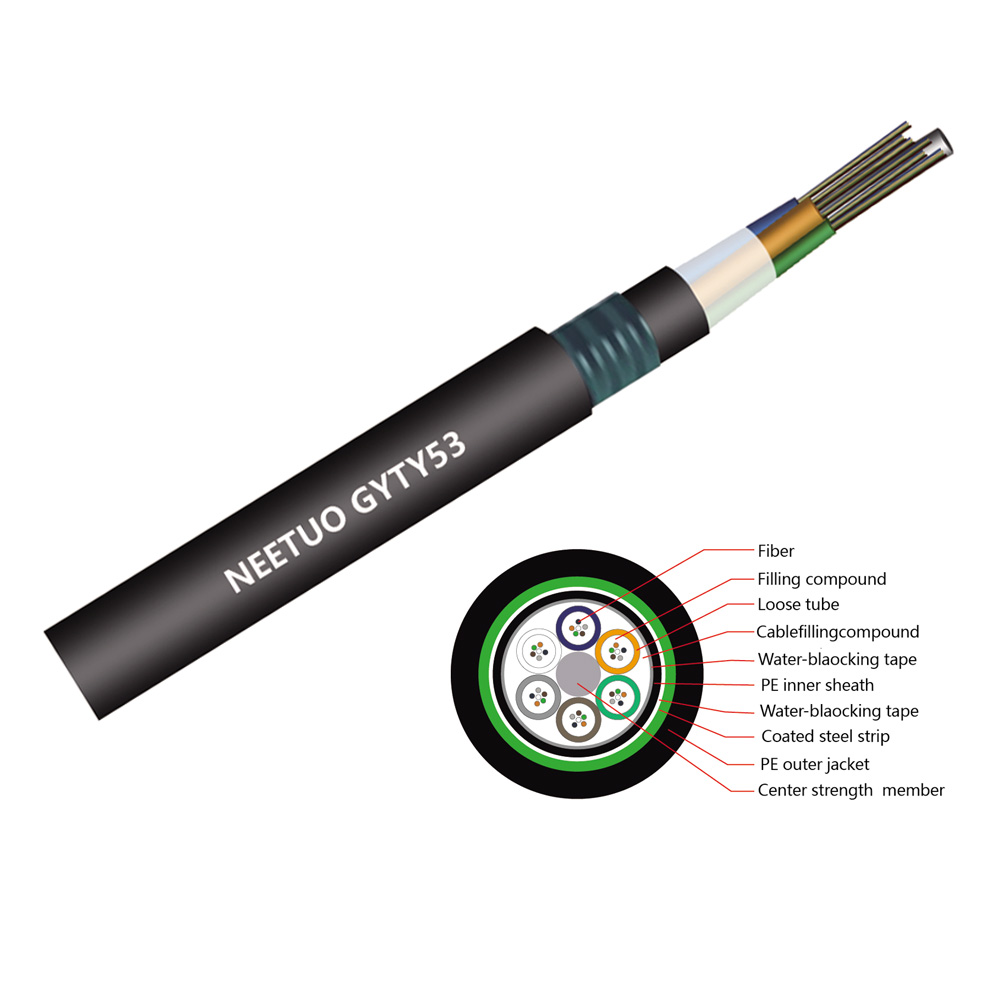

standard armored cable (GYTY53)

Double armored jackets of steel + aluminum offer high tension and crush resistance.
Special gel in the tube offers critical protection for the fibers.
With steel central strength member
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging.

Description
Inquiry

Characteristics:
Double armored jackets of steel + aluminum offer high tension and crush resistance.
Special gel in the tube offers critical protection for the fibers. With steel central strength member.
PE jacket itself prevents UV, and anti-uv material can be added to perform much better.
Good stability performance with high and low temperatures and anti-aging.

Applications:

Aerial conduit
Connecting communication equipments.
Multi-cores wiring systems in data centers.

STANDARD:
YD/T 901-2009&IEC60794-1

ordering information:
fiber count:12-144 cores
fire types
For example: GET 144 CORES SM/G652D

Specification:

fiber count	（mm）outer diameter		（g/M）weight	(QTY of tube)	max（N）tension		（N）max crush resistance		（MM）bending radius
fiber count	（mm）outer diameter		（g/M）weight	(QTY of tube)	short time	long time	short time	long time	static	Dynamic
2-60	12.5	160		6	1000	3000	1000	3000	15D	30D
62-72	13.5	200		6	1000	3000	1000	3000	15D	30D
74-96	15.0	240		8	1000	3000	1000	3000	15D	30D
98-120	16.0	280		10	1000	3000	1000	3000	15D	30D
122-144	18.0	300		12	1000	3000	1000	3000	15D	30D
