ADSS single jacket 12F 50M Span

ADSS Cable single jacket 12F 50M Span

Description
Inquiry

Fiber Optic Cable ADSS Cable Sheath 50m span 12F

Model: NTOFC-ADSS-S-50-HDPE-BK-SMD-12F

Characteristics: * All dielectric non-material strength member. * Special gel in the tube offers critical protection for the fibers. * FRP central strength members and filling compound of aramid yarn from Dupont. * Excellent AT performance * Good stability performance with high and low temperatures and anti-aging. * It’s light weight and small diameter reduce loading on towers from ice and wind.

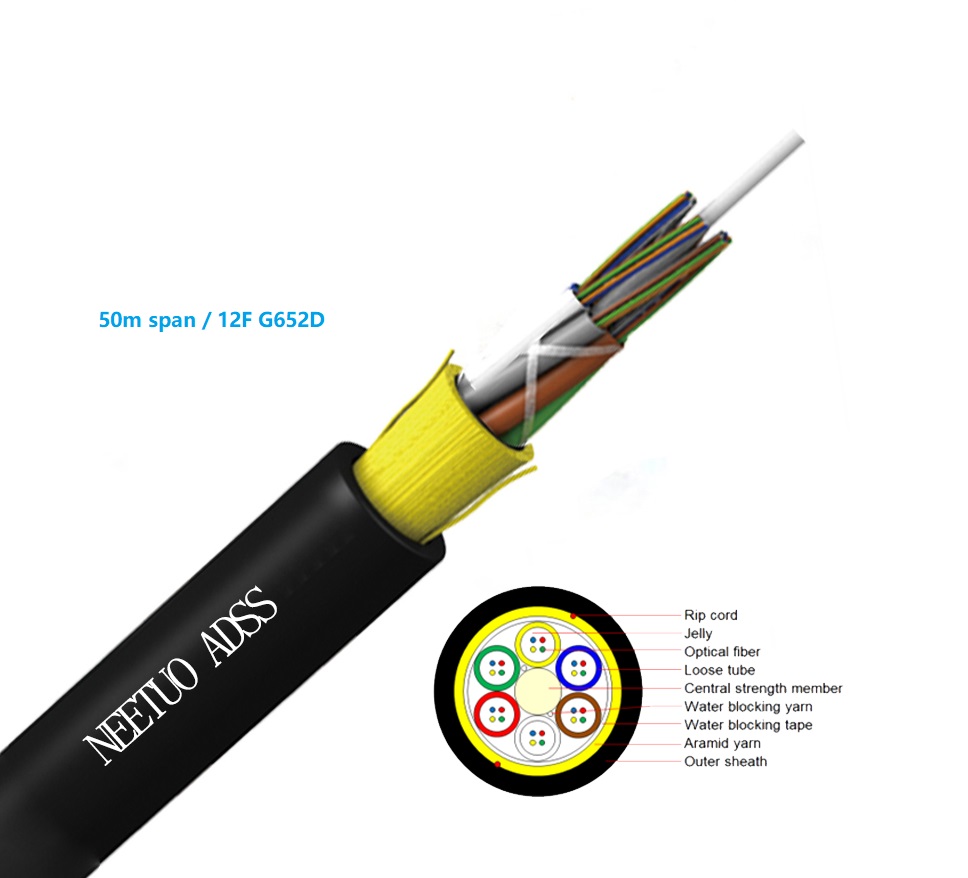

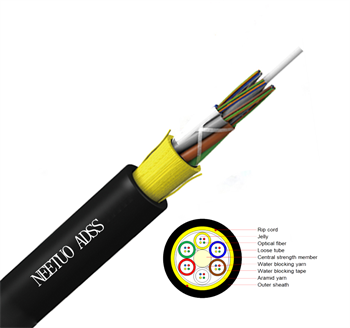

Structure Description: * Central strength member (CSM): FRP rod * Fiber 2-288F IUT-T G652D * Loose tube containing fibers and filled with a suitable water tightness filling compound * Loose tubes SZ stranded around CSM * Longitudinal water tightness: dry core with water swellable yarns * Water blocking tape * Aramid Yarn * Outer Sheath: Black HDPE * All materials are RoHS compliant

Applications: * Aerial / long distance wiring system * Wiring system in high voltage * Aerial installation in harsh environments.

Specification:

Parameter			Specifications
Fiber Count			12	24	36	48	96	144
Cable Structure			6	6	6	6	6	12
Fiber No. per tube			6	6	6	6	8	12
Loose Tube	Tube Counts		2	4	6	4	8	12
	Material		PBT
	Water-blocking Material		Fiber jelly
Central strength member	Material		FRP rod(Coated with PE if needed)
Central strength member	Size/mm		2.2	2.2	2.2	2.5	2.5	2.5
Ripcord Quantity(撕裂线数量)			2	2	2	2	2	2
Sheath		Material	HDPE,black
Sheath		NomThickness(mm)	1.6	1.6	1.6	1.6	1.6	1.6
Overal diameter(nom.)(mm)(±0.2)			10.3	10.4	10.4	11	12.3	14.9
Cable Weight/kg			73	76	76	86	109	162
MAT(N)		-	2000	2000	2000	2400	2400	2400
RTS(N)			5000	5000	5000	6000	6000	6000
Crush Resistance(N/100mm)		Short Term	2000	2000	2000	2000	2000	2000
Crush Resistance(N/100mm)		Long Term	600	600	600	600	600	600
Min.Bending Radius(mm)		Static	10D( D is the cable diameter)
Min.Bending Radius(mm)		Dynamic	20D
Temperature Range (℃)		Storage	-30~+70
		Installation	-10~+60
		Operation	-30~+70
