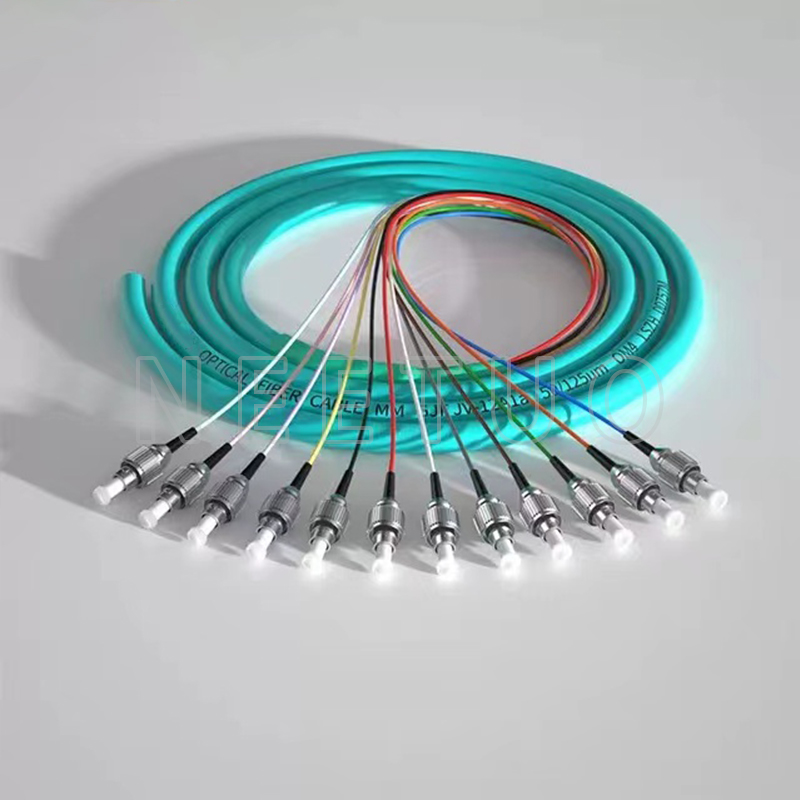

OM3&OM4 12C FC Bundled Pigtails Jacketed

Part#: NT-OFBPGL-12OM3-FC Part#: NT-OFBPGL-12OM4-FC This jacketed 12C colored pigtails are factory-terminated 12C 0.9mm tight buffer optical fiber cable jacketed with LSZH.

Product Brief Introduction:

This jacketed 12C colored pigtails are factory-terminated 12C 0.9mm tight buffer optical fiber cable jacketed with LSZH.



One end is terminated 12pieces FC connectors,the other end is exposed. This pigtails are generally used together with ODF,patch panel in high density connectivity application. The fiber could be G657A1, G657A2, OM3,OM4, different connectors are available,SC,LC,FC,ST,MPO/MTP, offering specific features and advantages to meet different networking requirement.  Fiber cores could be from 8C to 48C.



Neetuo uses precision ferrules and component, our production process is strict in accordance with standard process, 5 times grindings,2times end inspections and 100% insertion lose inspection,  top grade material plus standard production process make even single piece of our patch cord exceed international standard on property values.



Specification:

End A

12PCS Multimode   SC/LC/FC/ST

End B

Non connector, Exposed

Ferrule

Branded Ceramic   Ferrule

Cable length

1M/1.5M/2M

Branch Length

30cm

Bending Radius

30μm

Fiber Type

OM1/OM2/OM3/OM4

Wave length

850/1300nm

Cable OD:

6.0mm

Jacket

LSZH Flame   retardant

Insertion Lose

≤0.25dB

Return Lose

≥35dB

Tensil strength

70N

Plug times

>1000

Other options

Single Mode, 8C   to 48C,Jacket:PVC,OFNR,OFNP



Features:

● Low Insertion Lose,Durable;

● Precision grinding;

● RoHS compliant material;

● Standard production process;

● Every piece to be tested, 100% pass before delivery.

● Singlemode or Multimode

● PVC,LSZH,OFNP,OFNR
