CAT5e UTP(Unshielded) PVC CM Patch Cable Snagless Molded Boot 26AWG Pure Copper

NEETUO premium CAT5e UTP Patch Cable is made of 26AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Overview

NEETUO premium CAT5e UTP Patch Cable is made of 26AWG stranded pure copper conductor with unshielded twisted pair. Each end is molded with RJ45 crystal plug booted. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.

Features:

●Exceed ANSI/TIA-568-D.2 Category 5 and ISO 11801 Class D Standards

●Up to 250MHz with 1G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

●Performance Tested with Fluke and Wired T568B

●Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes

●Flexible Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts

●Use in Voice/Video/VoIP Systems in Local Area Network

●Support Current and Future Category 5e/5 Applications

 Specification:


Printing Mark

NEETUO LAN   CABLE CAT5E UTP 24AWG Stranded COPPER TIA/EIA568.B  xxxx/xx/xx    xxxxm

Category

CAT5e

Shielding

Unshielded

Conductor

26AWG Stranded  Copper Wire

Insulation

HDPE

Grouding Wire

/

Rip Cord

/

Jacket

PVC CMRound

OD

5.6mm±0.2

Connector

RJ45 crystal Molded Boot 50μ''

Wire Scheme

T568B,Straight

Operation   Temperature

-20 to +75°C

Installation   Temperature

-10 to +50°C



Standards:

ANSI/TIA-568-D.2

ISO/IEC 11801

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL1863

EU Directive 2011/65/EU (RoHS-2)

Compliant Network Standards:

10BASE-T     100BASE-TX        100BASE-T4

1000BASE-T  2.5GBASE-T         ATM-25

ATM-51        ATM-155             100VG-AnyLan

TR-4             TR-16 Active        TR-16 Passive

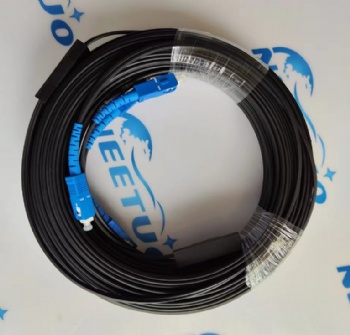

Packing demo:
