FTTH drop cable 12F with tube
FTTH drop cable 12F with tube

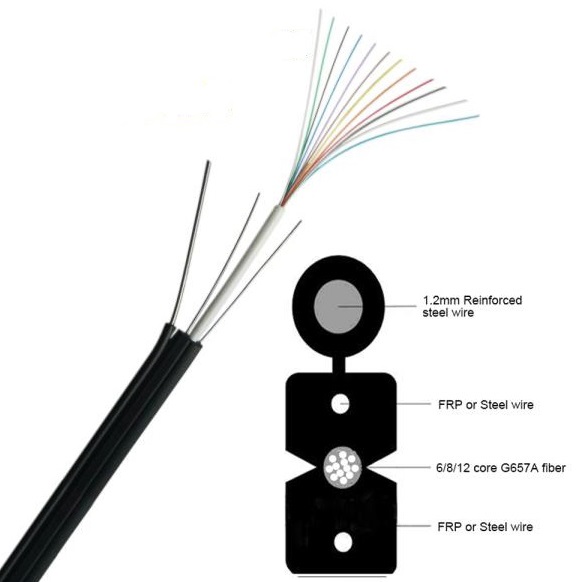

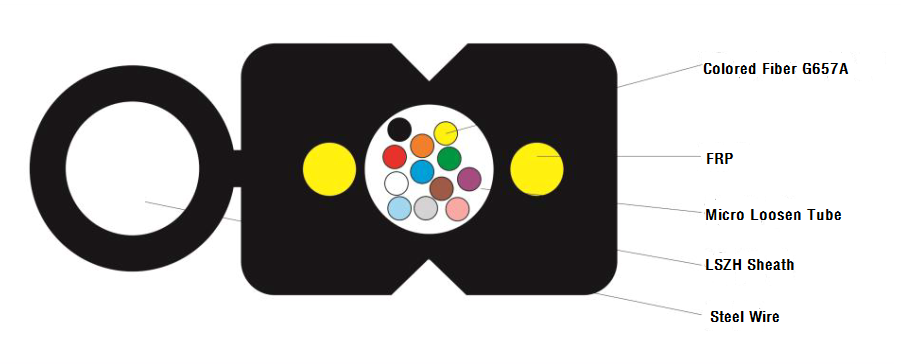

1,Structure
1 | Optical Fiber Unit 1-12F IUT-TG657A1 in micro loosen tube |
2 | Two parallel FRP are placed at two sides |
3 | Solid 1.0mm Phosphating steel wire |
4 | LSZH outer sheath |
Item | Contents | Value | ||||||
Fiber Count | / | 6 | 8 | 12 | ||||
Micro Loosen tube | OD | 1.5±0.1mm | ||||||
Material | LSZH | |||||||
Color | White | |||||||
Strength member | Material | FRP | ||||||
Diameter | Nominal 0.5mm | |||||||
Messenger wire | Diameter | Nominal 1.0mm | ||||||
Material | Steel wire | |||||||
Outer jacket | Dimension | 6.2(±0.2)*3.5(±0.2)mm | ||||||
Material | LSZH | |||||||
Color | Black | |||||||
Tensile performance | Short term | 600N | ||||||
Long term | 300N | |||||||
Crush | Short term | 1000N/100mm | ||||||
Long term | 300N/100mm | |||||||
Cable attenuation | ≦ 0.4Db/km at 1310nm, ≦ 0.3Db/km at 1550nm | |||||||
Min bend Radius(Dynamic) | 40times OD | |||||||
Min bend Radius(Static) | 20times OD | |||||||
Cable weight (Approx.) | 17.5kg/km | 17.5kg/km | 17.5kg/km | 27kg/km | 27kg/km | |||
